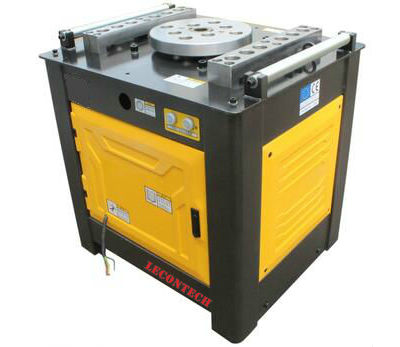

Rebar Bender GW42A-1   ( Manual Operating )

Technical Specification:

• Model: Lecontech  GW42A-1
• Operating type:Manual
• Bending Capacity:6-42mm (σb≤450MPa)  & 6-36mm (σb≤650)
• Working disc speed: 12 R/min
• Motor rotating speed: 1430 R/min
• Input voltage: 220V/380V/415V ( Customizing)
• Motor power: 3kw-4p
• Gear box: 16L
• Net weight: 360 kg
• Overall dimension: 810×760×860 mm(L×W×H)



Highlights:

• Adopts fully enclosed gear box system  separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
• Max Bending 42 mm steel bar with any needed design and shape ( ≤180°) for construction industry

---

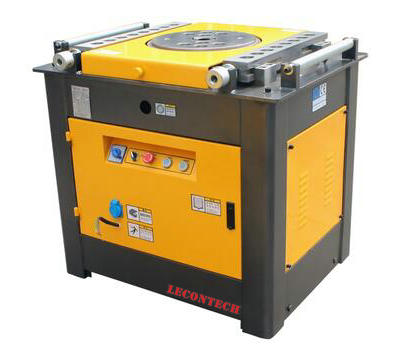

Rebar Bender GW42A-2 (Automatic / Manual Operating )

Technical Specification:

• Model: Lecontech  GW42A-2
• Operating type:Automatic/Manual
• Bending Capacity: (σb≤450MPa) 6-42mm & (σb≤650) 6-36mm
• Working disc speed: 12 R/min
• Motor rotating speed: 1430 R/min
• Input voltage: 220V/380V/415V ( Customizing)
• Motor power: 3kw-4p (brake motor)
• Gear box: 16L
• Net weight: 360 kg
• Overall dimension: 810×760×860 mm(L×W×H)



Highlights:

• Adopts fully enclosed gear box system  separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
• Brake motor and two limit switched ensuring the accuracy of the bending angle also after stopping and restarting.
• Max Bending 42 mm steel bar with any needed design and shape ( ≤180°) for construction industry
