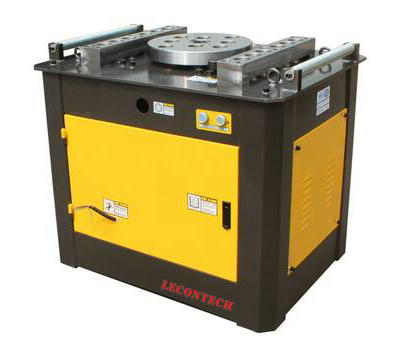

Rebar Bender GW50B-1 (Manual Operating)

Technical Specification:

• Model: Lecontech GW50B-1
• Operating type:Manual
• Bending Capacity:∅ 6-50mm (σb≤450MPa)  &   ∅6-40mm (σb≤650Mpa)
• Working speed: 11 R/min
• Motor rotating speed: 1440 R/min
• Input voltage: 220V/380V/415V ( Customizing)
• Motor Power: 4kw-4p
• Gear box:23L
• Net weight: 475 kg
• Overall dimension: 1000×800×900 mm  (L×W×H)



Highlights:

• Adopts fully enclosed gear box system  separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
• Max Bending 50 mm steel bar with any needed design and shape ( ≤180°) for construction industry

---

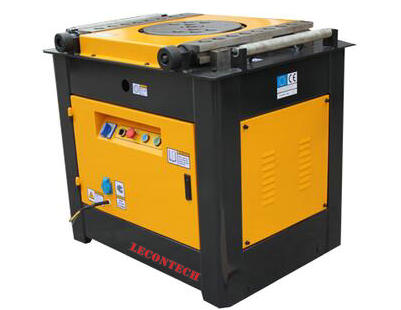

Rebar Bender GW50B-2 (Automatic/Manual Operating)

Technical Specification:

• Model: Lecontech GW50B-2
• Operating type:Automatic/Manual
• Bending Capacity:∅ 6-50mm (σb≤450MPa)  &   ∅6-40mm (σb≤650Mpa)
• Working speed: 11 R/min
• • Motor rotating speed: 1440 R/min
  • Input voltage: 220V/380V/415V ( Customizing)
• Motor Power: 4kw-4p(Brake Motor)
• Gear box:23L
• Net weight: 475 kg
• Overall dimension: 1000×800×900 mm  (L×W×H)



Highlights:

• Adopts fully enclosed gear box system  separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
• Brake motor and two limit switched ensuring the accuracy of the bending angle also after stopping and restarting.
• Max Bending 50 mm steel bar with any needed design and shape ( ≤180°) for construction industry
