CNC Automatic Stirrup Bender LT-12A

cnc-automatic-stirrup-bender-lt12a-lecontech



Machine Technical Specification :

  • Model:Lecontech LT-12A
  • Bending Single Wire: ∅5-13mm
  • Bending Double Wire:∅5-10mm
  • Max. Bending Angle:± 180° (bi-direction bending)
  • Central Mandrel Diameter: ∅25-32mm
  • Max. Pulling Speed: 110m/min
  • Max. Bending Speed: 1200°/Sec
  • Average Electric Power Consumption: 6KW/h

Reinforcing Stirrup Size:

  • Max. length of stirrup side (diagonal) :2300mm
  • Min. length of stirrup side :120mm



CNC Stirrup Bender LT-12B

cnc-automatic-stirrup-bender-lt12a-lecontech

Technical Specification:

  • Model:Lecontech LT-12B
  • Bending Single Wire: ∅5-13mm
  • Bending Double Wire:∅5-10mm
  • Max. Bending Angle:± 180° (bi-direction bending)
  • Central Mandrel Diameter: ∅25-32mm
  • Max. Pulling Speed: 110m/min
  • Max. Bending Speed: 1200°/Sec
  • Average Electric Power Consumption: 6KW/h



Reinforcing Stirrup Size:

  • Max. length of stirrup side(diagonal) :1440mm
  • Min. length of stirrup side :120mm

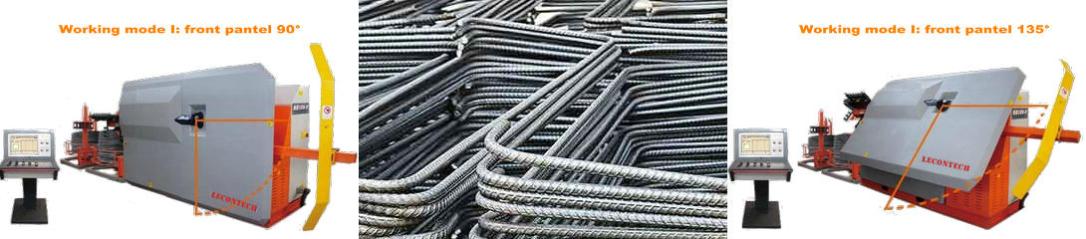

Difference between Automatic Stirrup Bender LT-12A  & LT-12B

  • LT-12A front panel can tilt from 90° to 135°,max length of stirrup side can be up to 2.2m
  • LT-12B front panel only stay at 90°, max length of stirrup side can only be 1.3m
